Dane techniczne

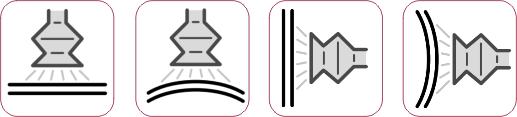

Ssawki uniwersalne płaskie PVG Ø4 ÷ 85 mm dedykowane są do mocowania prawie wszystkich materiałów o powierzchniach płaskich, lekko wklęsłych lub wypukłych. Sferyczna budowa i duża elastyczność przyssawek zapewniają ochronę powierzchni chwytanego elementu. Przyssawki próżniowe nadają się do chwytania poziomych i pionowych. Ssawki PVG mogą pracować w niskich i wysokich temperaturach oraz w różnym środowisku chemicznym.
Materiały:
- NBR - perbunan
- SI - silikon
- NK - naturalny kauczuk
Przeznaczenie dla branży: metal | drewno | plastik | opakowania.
Przykładowy kod zamówieniowy: PVG 45 H-NBR
seria: PVG | średnica: 45mm | wariant: wysoki (H) | materiał: NBR
Łączniki do ssawek: łączniki wciskane typu N.
Jak zamawiać
Skontaktuj się z inżynierem sprzedaży, szczegóły dostępne w zakładce
Kontakt z inżynieremKontakt z inżynierem sprzedaży
Produkty dostępne w sklepie internetowym

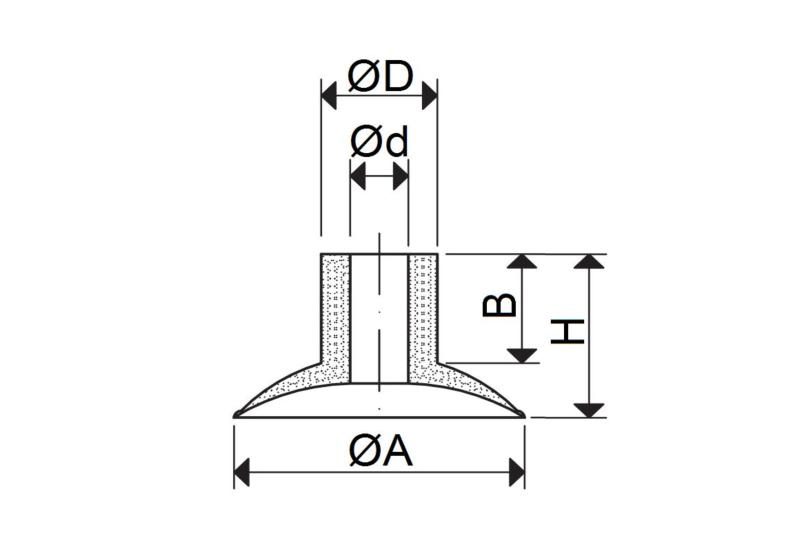

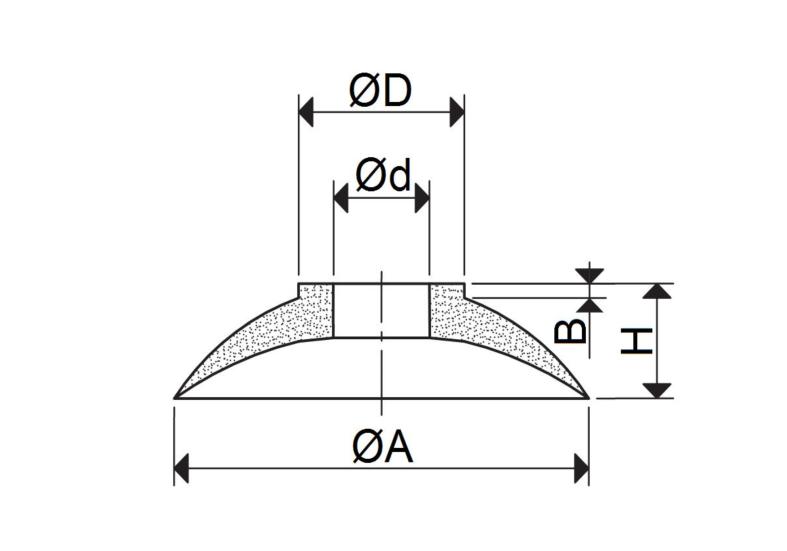

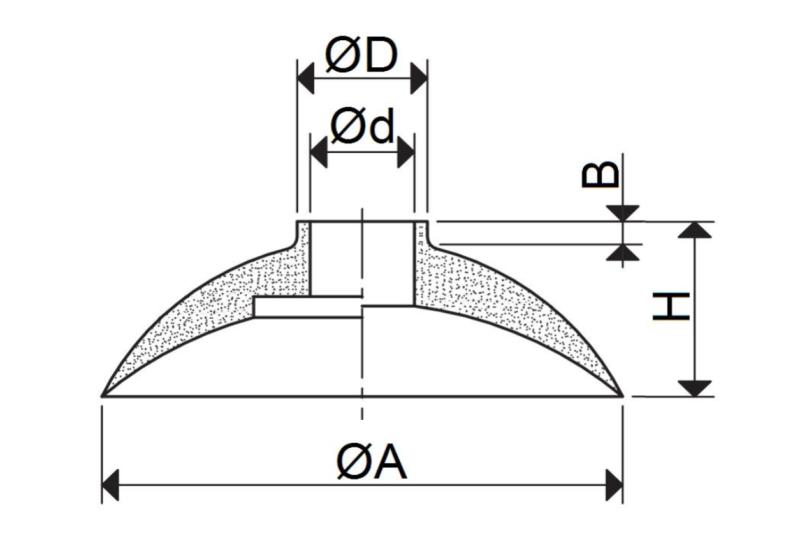

Lp. | Kod produktu | ØA mm | Materiał - | V cm3 | Siła nośna N | H mm | Ød mm | ØD mm | B mm | Skok mm | Masa g | Dostępność | Koszyk |
1 | PVG 5-NS | 5 | kauczuk naturalny | 0.02 | 1 | 8 | 1.5 | 3 | 6 | 1 | - | | |
2 | PVG 6-NK | 6 | kauczuk naturalny | 0.03 | 1.4 | 8 | 1.5 | 3 | 6 | 1 | - | | |
3 | PVG 7-NBR | 7 | perbunan | 0.04 | 1.9 | 7 | 2 | 5 | 6 | 1 | - | | |
4 | PVG 8-NBR | 8 | perbunan | 0.05 | 2.4 | 8 | 2.5 | 5 | 6 | 1 | - | | |
5 | PVG 8-NK | 8 | kauczuk naturalny | 0.05 | 2.4 | 8 | 2.5 | 5 | 6 | 1 | - | | |
6 | PVG 9-SI | 9 | silikon | 0.06 | 3.1 | 7 | 2 | 5 | 5.5 | 1 | - | | |
7 | PVG 10-NBR | 10 | perbunan | 0.22 | 4.5 | 11 | 4 | 7 | 8.5 | 2.5 | - | | |
8 | PVG 10-NK | 10 | kauczuk naturalny | 0.22 | 4.5 | 11 | 4 | 7 | 8.5 | 2.5 | - | | |
9 | PVG 10-NKB | 10 | neopren | 0.22 | 4.5 | 11 | 4 | 7 | 8.5 | 2.5 | - | | |
10 | PVG 10-SI | 10 | silikon | 0.22 | 4.5 | 11 | 4 | 7 | 8.5 | 2.5 | - | | |
11 | PVG 12-NBR | 12 | perbunan | 0.24 | 6.1 | 11 | 4 | 8 | 8 | 2 | 0.6 | | |
12 | PVG 12-NK | 12 | kauczuk naturalny | 0.24 | 6.1 | 11 | 4 | 8 | 8 | 2 | 0.6 | | |
13 | PVG 12-SI | 12 | silikon | 0.24 | 6.1 | 11 | 4 | 8 | 8 | 2 | 0.6 | | |
14 | PVG 15-NBR | 15 | perbunan | 0.35 | 8.8 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
15 | PVG 15-NK | 15 | kauczuk naturalny | 0.35 | 8.8 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
16 | PVG 15-SI | 15 | silikon | 0.35 | 8.8 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
17 | PVG 18-NBR | 18 | perbunan | 0.43 | 12 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
18 | PVG 18-NE | 18 | neopren | 0.43 | 12 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
19 | PVG 18-NK | 18 | kauczuk naturalny | 0.43 | 12 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
20 | PVGM 15-NBR | 18 | silikon | 0.43 | 12 | 12 | 4 | 8 | 8 | 2.5 | 0.7 | | |
21 | PVG 20-NBR | 20 | perbunan | 0.49 | 14 | 12 | 4 | 8 | 8 | 2.5 | 1.2 | | |
22 | PVG 20-NK | 20 | kauczuk naturalny | 0.49 | 14 | 12 | 4 | 8 | 8 | 2.5 | 1.2 | | |
23 | PVG 20-SI | 20 | silikon | 0.49 | 14 | 12 | 4 | 8 | 8 | 2.5 | 1.2 | | |
24 | PVG 20-SIB | 20 | silikon biały | 0.49 | 14 | 12 | 4 | 8 | 8 | 2.5 | 1.2 | | |
25 | PVG 22-NBR | 22 | perbunan | 0.87 | 16 | 13 | 4 | 8 | 8 | 3 | 1.2 | | |
26 | PVG 22-NK | 22 | kauczuk naturalny | 0.87 | 16 | 13 | 4 | 8 | 8 | 3 | 1.2 | | |
27 | PVG 22-SI | 22 | silikon | 0.87 | 16 | 13 | 4 | 8 | 8 | 3 | 1.2 | | |
28 | PVG 25-NBR | 25 | perbunan | 1.84 | 20 | 8 | 6 | 12 | 2 | 4.5 | 1.2 | | |
29 | PVG 25-NK | 25 | kauczuk naturalny | 1.84 | 20 | 8 | 6 | 12 | 2 | 4.5 | 1.2 | | |
30 | PVG 25-NKC | 25 | kauczuk naturalny czarny | 1.84 | 20 | 8 | 6 | 12 | 2 | 4.5 | 1.2 | | |
31 | PVG 25-SI | 25 | silikon | 1.84 | 20 | 8 | 6 | 12 | 2 | 4.5 | 1.2 | | |
32 | PVG 25-SIB | 25 | silikon biały | 1.84 | 20 | 8 | 6 | 12 | 2 | 4.5 | 1.2 | | |
33 | PVG 25H-NBR | 25 | perbunan | 1.42 | 20 | 16 | 6 | 12 | 10 | 4.5 | 2 | | |
34 | PVG 25H-SI | 25 | silikon | 1.42 | 20 | 16 | 6 | 12 | 10 | 4.5 | 2 | | |
35 | PVG 30-NBR | 30 | perbunan | 4.46 | 26 | 8 | 6 | 12 | 1 | 4.5 | 1.9 | | |
36 | PVG 30-NK | 30 | kauczuk naturalny | 4.46 | 26 | 8 | 6 | 12 | 1 | 4.5 | 1.9 | | |
37 | PVG 30-SI | 30 | silikon | 4.46 | 26 | 8 | 6 | 12 | 1 | 4.5 | 1.9 | | |
38 | PVG 30-SIB | 30 | silikon biały | 4.46 | 26 | 8 | 6 | 12 | 1 | 4.5 | 1.9 | | |
39 | PVG 30H-NBR | 30 | perbunan | 3.17 | 26 | 17 | 6 | 12 | 10 | 4.5 | 2.7 | | |
40 | PVG 30H-SI | 30 | silikon | 3.17 | 26 | 17 | 6 | 12 | 10 | 4.5 | 2.7 | | |
41 | PVG 35-NBR | 35 | perbunan | 1.2 | 33 | 8 | 6 | 12 | 1 | 4.5 | 2.4 | | |
42 | PVG 35-SI | 35 | silikon | 1.2 | 33 | 8 | 6 | 12 | 1 | 4.5 | 2.4 | | |
43 | PVG 35S-SI | 35 | silikon | 1.2 | 33 | 8 | 6 | 12 | 1 | 4.5 | 2.4 | | |
44 | PVG 35H-NBR | 35 | perbunan | 7.72 | 33 | 16 | 10 | 15 | 10 | 4.5 | 2.6 | | |
45 | PVG 35H-SI | 35 | silikon | 7.72 | 33 | 16 | 10 | 15 | 10 | 4.5 | 2.6 | | |
46 | PVG 40H-NBR | 40 | perbunan | 1.61 | 40 | 18 | 10 | 15 | 10 | 5.5 | 3.1 | | |
47 | PVG 40H-NK | 40 | kauczuk naturalny | 1.61 | 40 | 18 | 10 | 15 | 10 | 5.5 | 3.1 | | |
48 | PVG 45-NBR | 45 | perbunan | 7.33 | 48 | 18 | 10 | 15 | 5 | 8.5 | 6.7 | | |
49 | PVG 45-SI | 45 | silikon | 7.33 | 48 | 18 | 10 | 15 | 5 | 8.5 | 6.7 | | |
50 | PVG 45H-SI | 45 | silikon | 2.46 | 48 | 23 | 10 | 15 | 10 | 8.5 | 6.6 | | |
51 | PVG 60-NBR | 60 | perbunan | 14.5 | 76 | 22 | 10 | 15 | 4 | 9.5 | 6.7 | | |
52 | PVG 60-NK | 60 | kauczuk naturalny | 14,5 | 76 | 22 | 10 | 15 | 4 | 9.5 | 6.7 | | |
53 | PVG 60-SI | 60 | silikon | 14.5 | 76 | 22 | 10 | 15 | 4 | 9.5 | 6.7 | | |
54 | PVG 65-NBR | 65 | perbunan | 17 | 88 | 24 | 10 | 15 | 5 | 10 | 10 | | |
55 | PVG 85-NBR | 85 | perbunan | 43.4 | 137 | 41 | 15 | 25 | 16 | 14 | 35.9 | | |
56 | PVG 85-SI | 85 | silikon | 43.4 | 137 | 41 | 15 | 25 | 16 | 14 | 35.9 | | |
